Instrument

The DSA-110

The NSF-funded Deep Synoptic Array-110 (DSA-110) is a radio interferometer purpose-built for fast radio burst (FRB) detection and direct localization. The array is sited at the Owens Valley Radio Observatory (OVRO). 110 × 4.65-m dishes will continuously survey for FRBs at frequencies between 1280 – 1530 MHz. Over a three-year science program, the DSA-110 will deliver a sample of more than 300 FRBs localized to regions smaller than 3 arcseconds (<1/1000 of a degree) on the sky.

This is made possible by a suite of novel instrumentation developed by our group, including precisely engineered antennas, ultra-low noise ambient-temperature receivers, and a powerful real-time, autonomous data-analysis system. Public FRB alerts will be issued via the VOEvent service to the entire astronomical community to ensure rapid follow-up of DSA-localized FRBs.

Image: G. Hallinan

Specifications

ParameterValue
Number of dishes *110
Dish diameter4.65 m
Aperture efficiency0.65
System temperature #25 K
Frequency band1280 – 1530 MHz
Number of channels8192
FRB search sensitivity (7.5σ, 1 ms) †< 1.7 Jy ms
Field of view10 deg²
Maximum baseline2.6 km
FRB localization accuracy± 1.5 arcsec
Survey speed3.1 × 104 deg² m4 K−2

* 95 dishes are in a Tee-shaped core for FRB searching, with 15 outriggers.
# Measured on-sky, including all contributions.
† This applies within the entire field of view.

Image: V. Ravi

Technology

The DSA-110 is made possible by novel technologies developed by the instrument team, together with the adaptation of open-source and off-the-shelf hardware and software components.

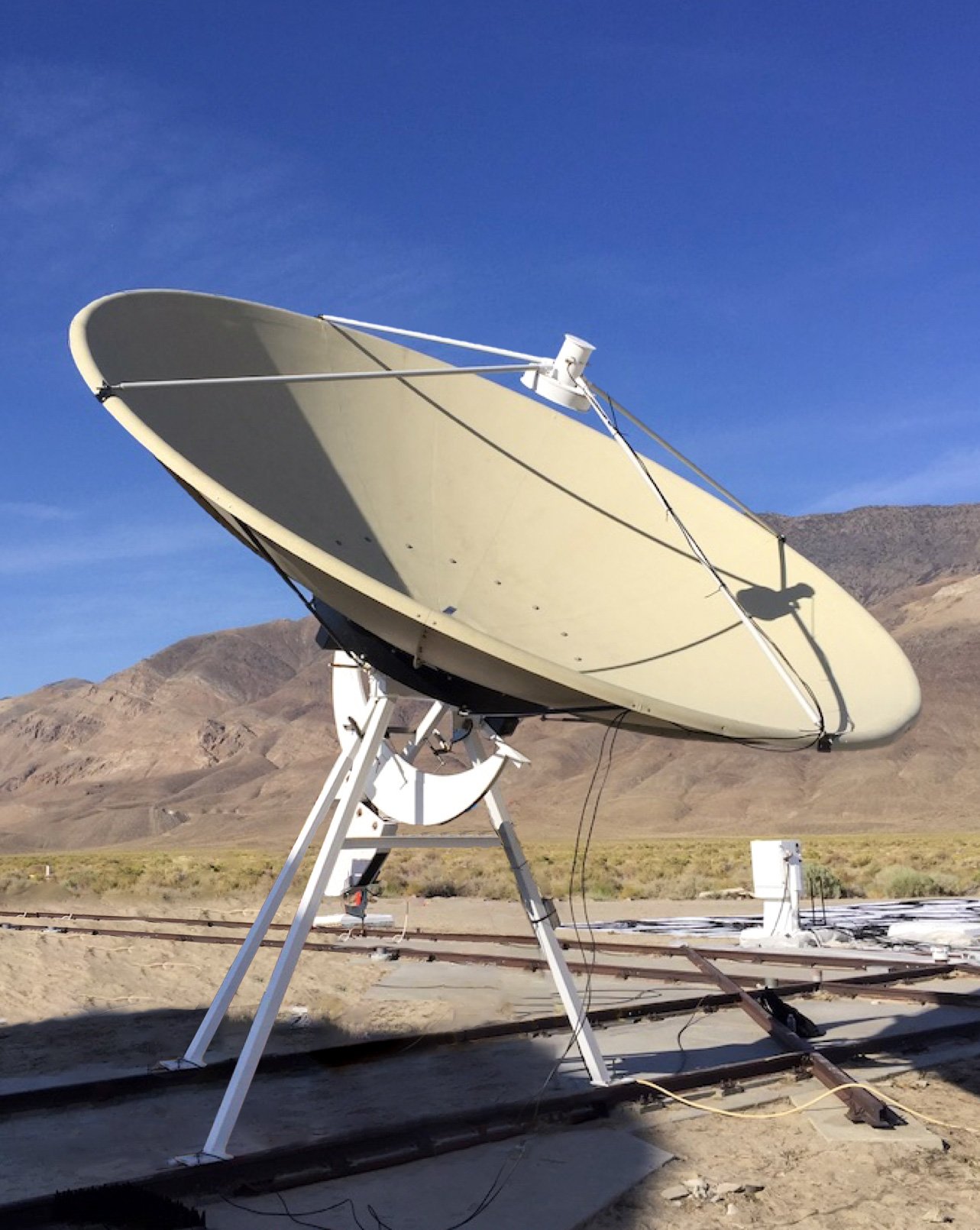

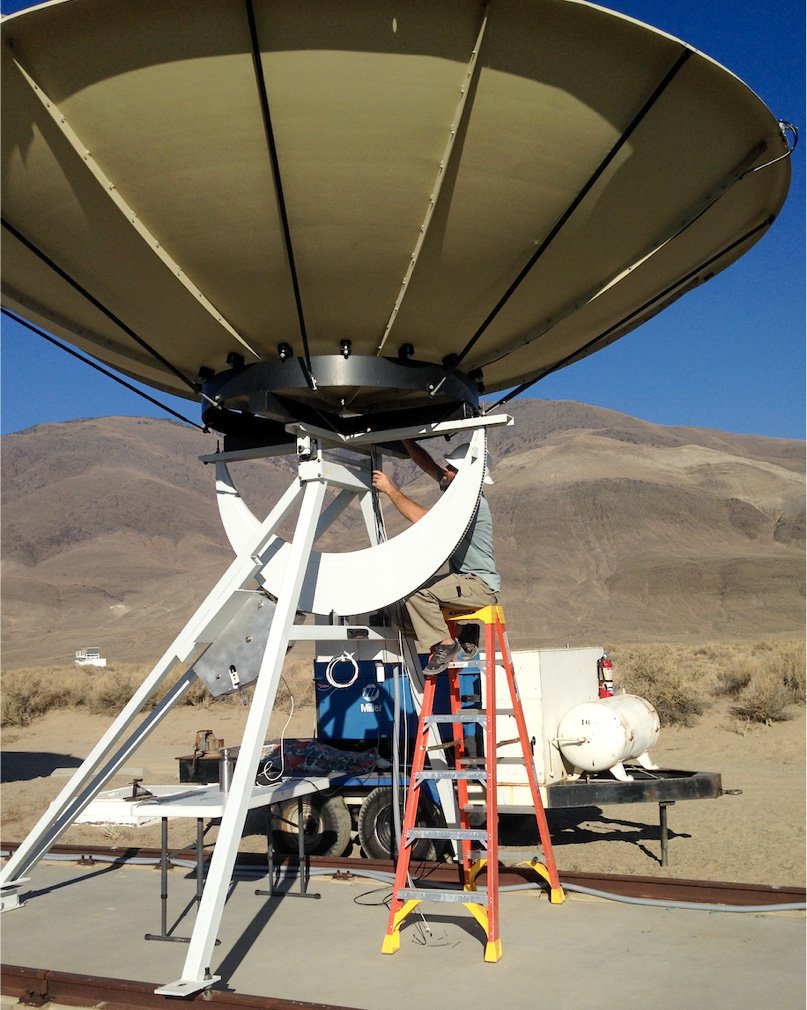

OVRO designed and built mount and drive, remotely steerable in elevation. (Image: M. Hodges)
+

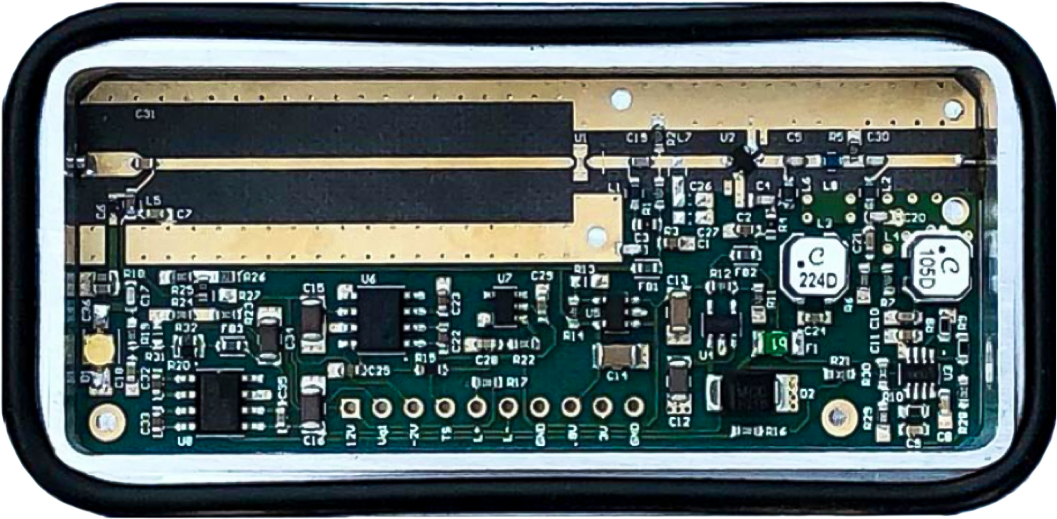

Ambient-temperature low noise amplifier (LNA) designed and built by the OVRO receiver lab, led by Sandy Weinreb, for the DSA-110, delivering 7K noise temperature. The receiver lab also designed and built custom RF-over-fiber signal transport modules, and signal-conditioning components. (Image: S. Weinreb)
+
Real-time, autonomous digital backend that performs full cross-correlation, self-calibration, beamforming of the core antennas, FRB searching, and voltage recording. All components of the DSA-110 are monitored and controlled using a custom etcd-based architecture.

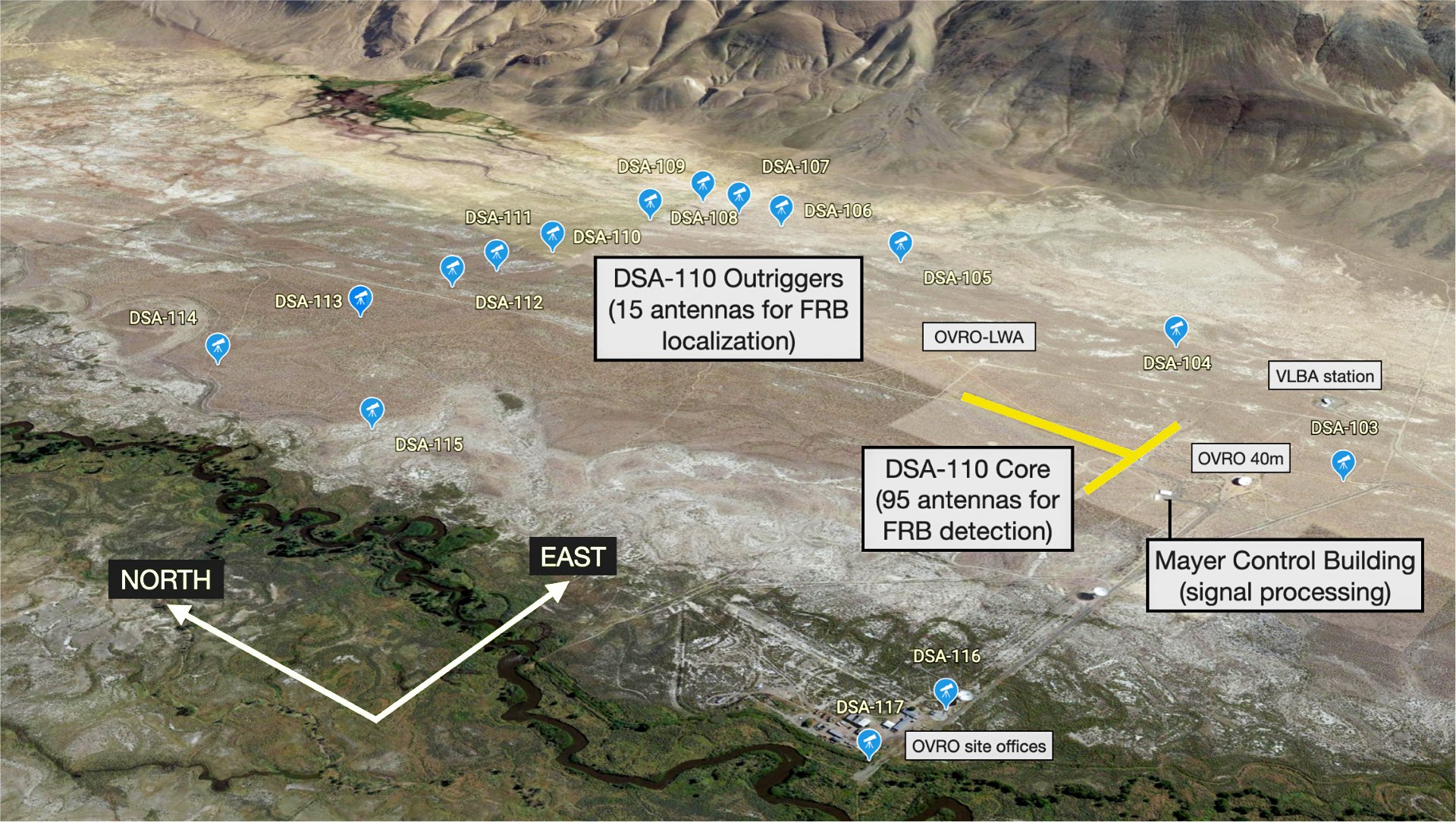

Location and Configuration

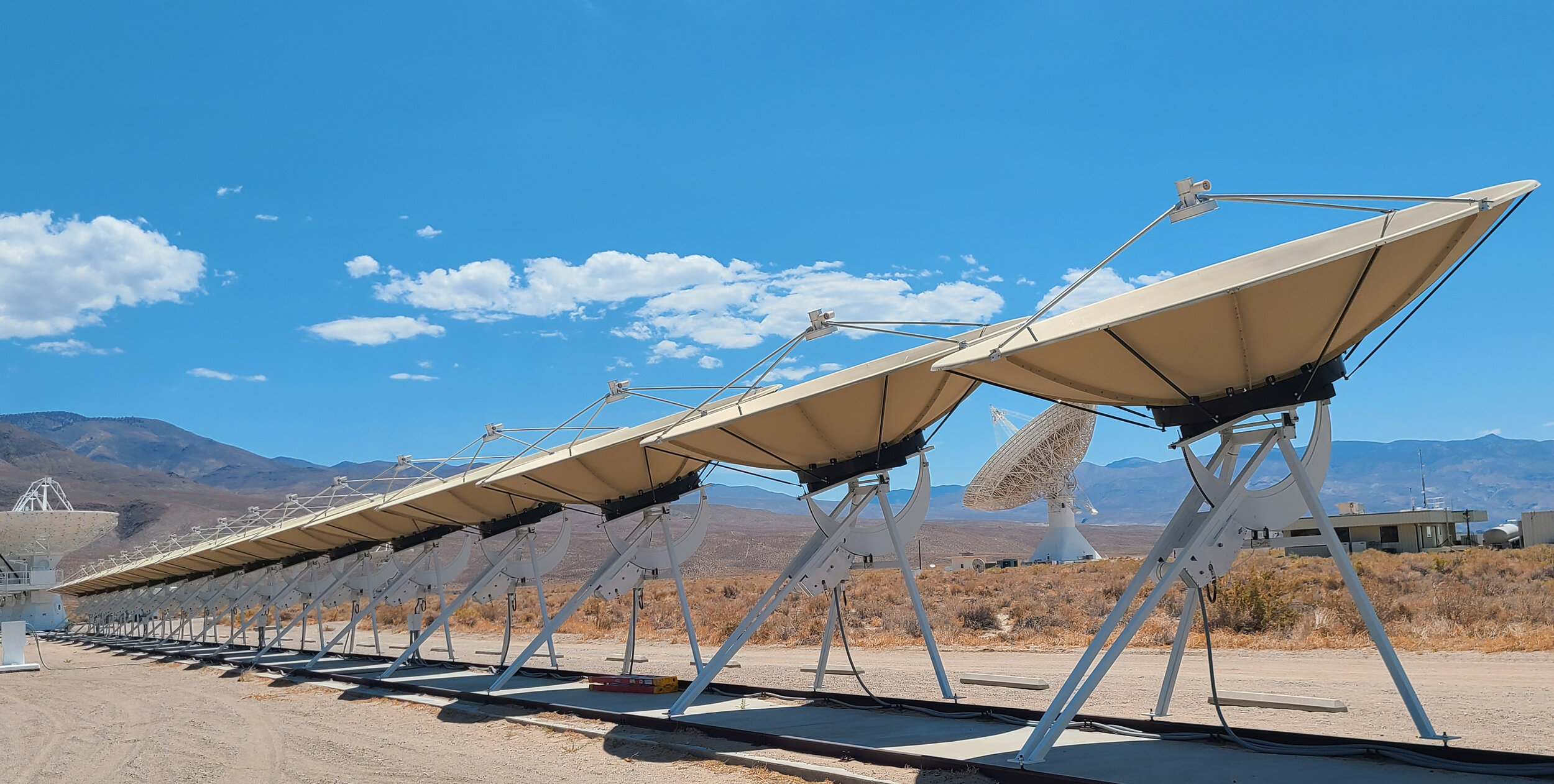

The DSA-110 is currently under construction at OVRO, and a 63-antenna deployment is being commissioned. The array will consist of a core of 95 antennas arranged on an existing Tee-shaped infrastructure for FRB searching, and a further 15 outrigger antennas distributed across the OVRO site for FRB localization. All antennas are served with power and optic-fiber infrastructure, the latter for signal transport and monitor/control. A real-time search pipeline will trigger the storage of data from all antennas for the purposes of offline localization. 66 antennas are currently operational, including all outriggers and 51 core antennas.
